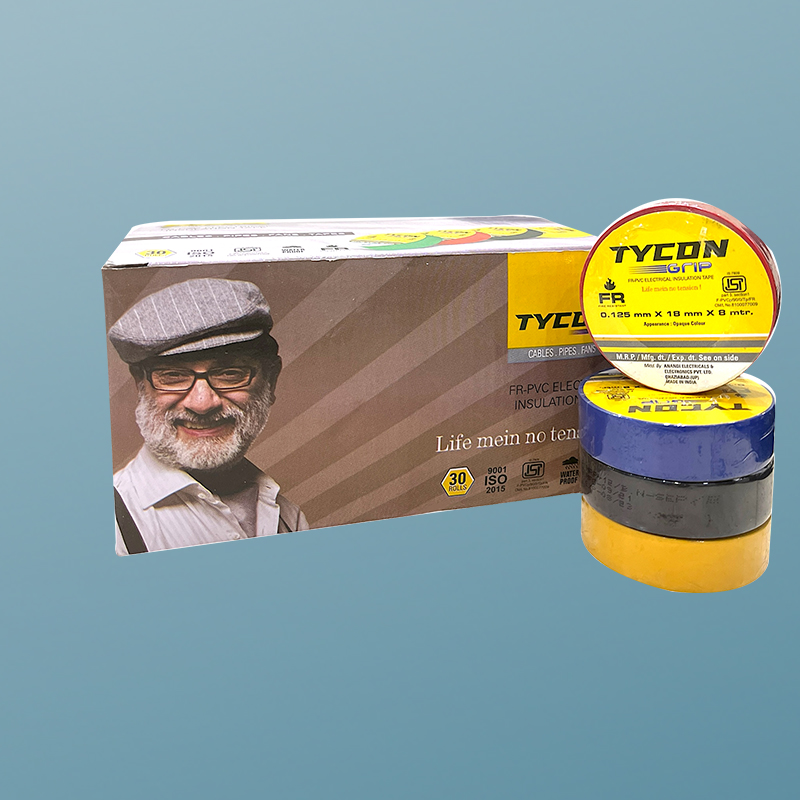

PVC Electrical Insulation Tapes

One of the commonly used electrical accessories is electrical tapes. These tapes are made of polyvinyl chloride or PVC. These have insulating properties and offer long-lasting stickiness, thus making them suitable for sealing electrical wires. These tapes can easily withstand high temperatures that range between 70- 80 degrees Celsius. These are available in different colours like red, blue, green, yellow and black.

Technical Specifications:

  • Adhesion to steel: 1.6N/10mm width (min)
  • Adhesion to backing: 1.3N/10mm width (min)
  • Tensile Strength: 150N/10mm width per mm thickness (min)
  • Electric Strength at room temp.: 40Kv/mm thickness (min)
  • Electric Strength after humidification at 270C+2%RG: 35KV/mm (min)
  • Flammable: Self Extinguishing
  • Insulation Resistance: M Ohms/25mm width (min)Colour: OPAQUE
